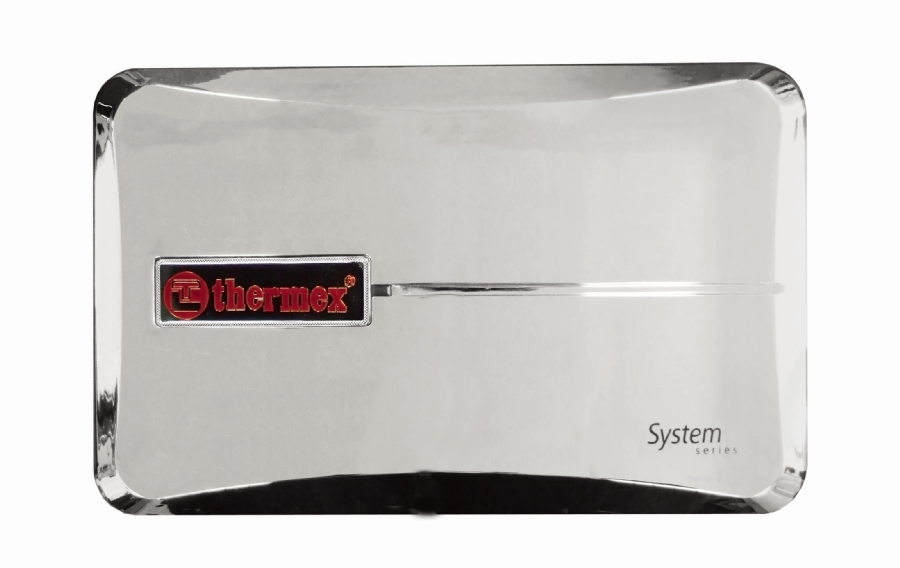

Thermex system 800 Chrome

Electric instantanious water heater, 8 KW

The new Thermex System electric water heater.

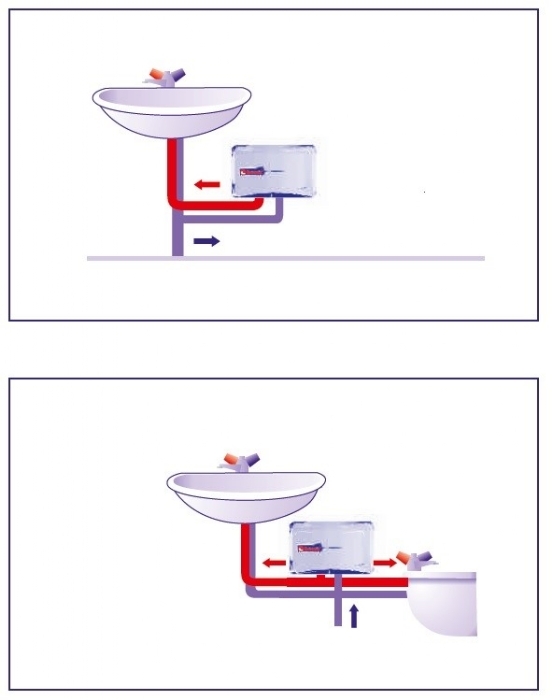

Flow-through heaters are gaining popularity. This water heater is simply mounted between your cold water supply line and starts to work as soon as you turn on the tap. The water heater so only use power when hot water is required. The water heater is pressure-resistant to 6 bar and works automatically. The Thermex electric heaters have a much smaller size than conventional boilers and will therefore always fit in your kitchen or bathroom. Thermex has become a leader in electric water heaters. The Thermex System 800 (cr) is ideal to provide your kitchen or bath of hot water, and in both areas, you can install it easily, for example in the lower cabinet under the kitchen sink or in a bathroom. The small dimensions of 170 x 270 x 95 mm makes it easy. The Thermex System is installed horizontally. The diameter of the water connecting pipes are standard 1/2 inch, so each water pipe is easy to connect.
Especially in combination with solar energy a Thermex System is the right choice.

Technical data:

• Handmade copper heat exchanger
• Max. Operating pressure 6 bar
• Max. Water temperature 60 °C
• Shallow shape, horizontal installation
• Color: chrome
• Includes showerhead

Specifications: Model System 8 kW,

Size 27 x 19 x 9.5 mm.

Empty weight 2 KG

Voltage V ~ 220-240

Capacity l / min 3.0-5.0
Max. heating temperature 60 °C

Recommended cable mm²: 4.0

Connection diameter inches: 1/2 "(AG)

Minimum water pressure MPa: 0.05

Max. Water pressure MPa: 0.6


This item is no longer available, contact us for possible alternatives.
